Lýsing
The SCOTT SUB Tour 40 E-Bike packs power, and capability to deliver a confident pedal‑assisted experience that elevates your rides.

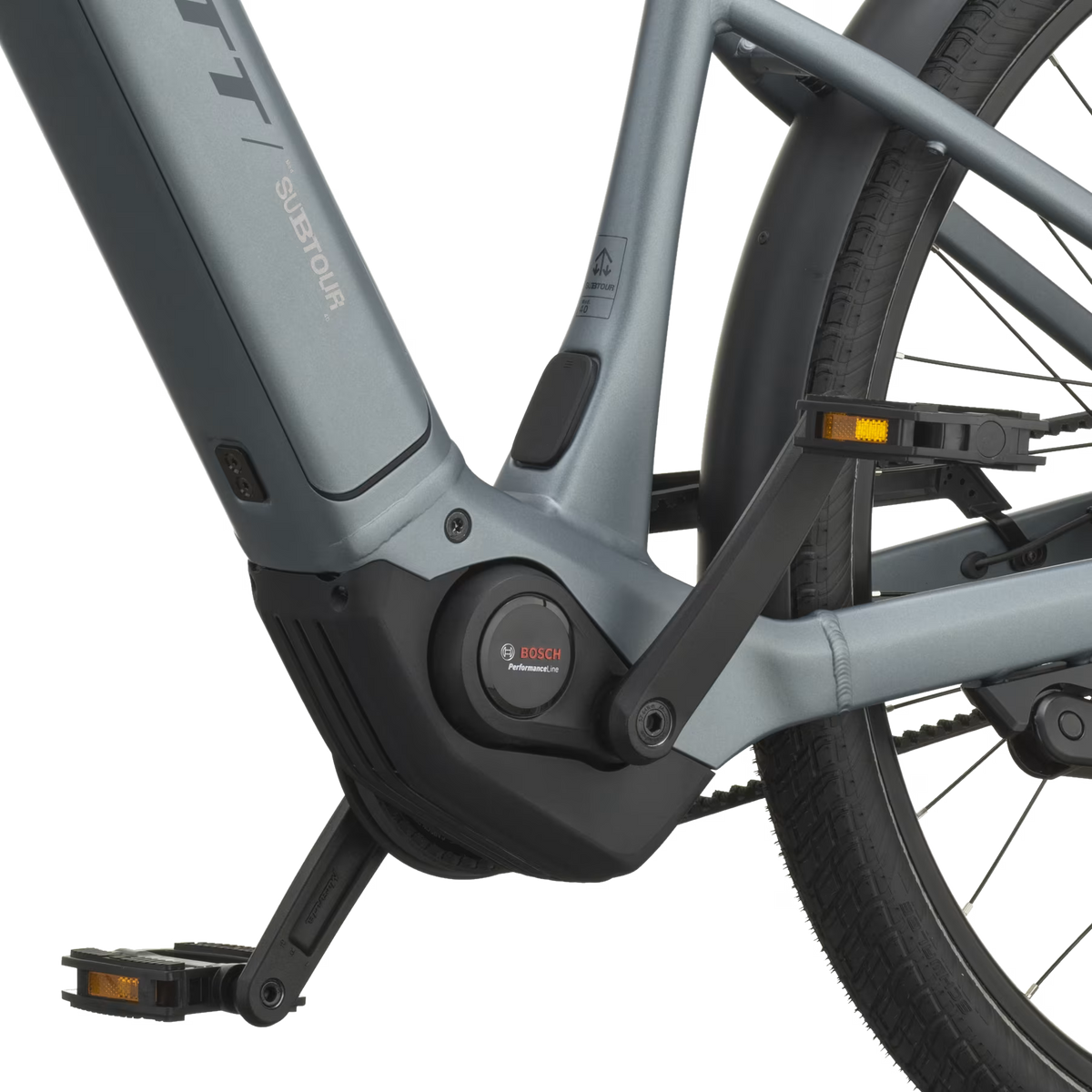

A Bosch Performance motor drives the bike with quiet, precise acceleration, while the removable 540Wh battery supplies ample energy for city rides, and surroundings. The belt‑driven drivetrain adds smooth, reliable functionality, keeps maintenance simple and reduces service intervals.
Riding feels natural and responsive across every mode, whether you’re commuting to the office, meeting friends for dinner, or escaping the urban hustle for an afternoon adventure in the city surroundings.

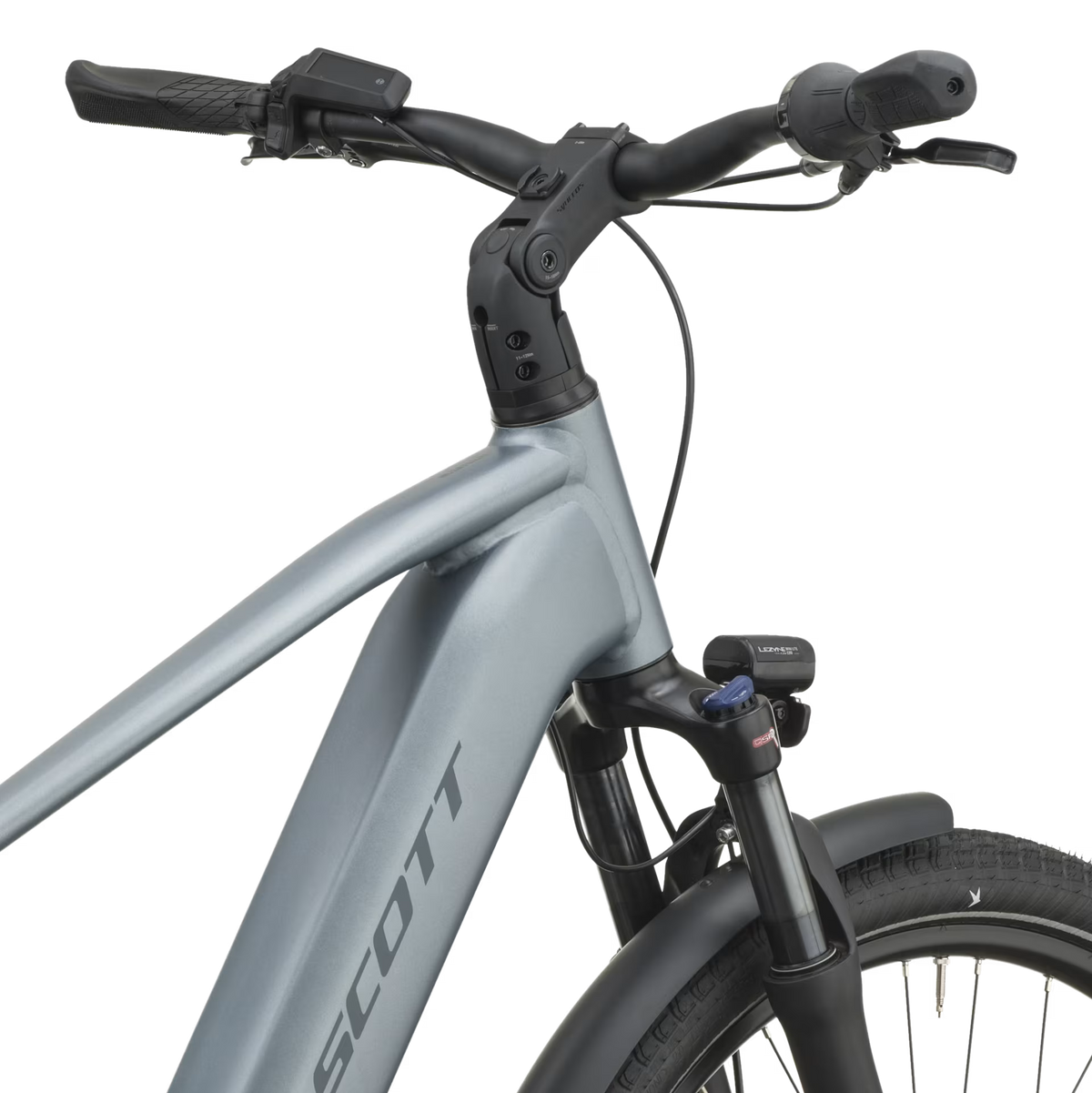

An adjustable stem lets you customize your fit for a comfortable upright posture or a sportier riding position, and its built-in SP connection securely mounts your phone so navigation stays visible and hands‑free.
The rear rack supports up to 30kg, and it is compatible with Racktime SNAPIT 2.0 and KID'n’CARRY systems, making the SUB Tour 40 a sturdy workhorse for groceries, gear, or riding with a child's seat. The front light is also thoughtfully positioned to free up space for a front basket, giving you even more flexibility for carrying items.
All of these features come together to make SUB Tour 40 feel capable and ready to adapt to your daily life.
Please note that bike specifications are subject to change without prior notice.
| Frame |
Alloy S-XXL=29", 6061 Alloy custom butted tubing, Side extraction battery, 135mm with 46mm Beltline
|
| Fork |
SR Suntour NVX 32 5TA COIL LO
|
| Travel |
100mm
|
| Headset |
Feimin, 28.8-56-62(39.8/30), H887 Bearing Cup
|
| Rear Derailleur |
Shimano Nexus Inter 5e
|
| Shifters |
Nexus 5 Revo Shifter
|
| Brakes |
Shimano BR-MT200 2-Piston
|
| Crankset |
Miranda Virage 170mm
|
| Front Disc Rotor |
Shimano SM-RT30 CL, 180mm
|
| Chainguide |
Chaincase cover
|
| Rear Disc Rotor |
Shimano SM-RT30 CL, 160mm
|
| Chainring |
Gates CDC 46T w/Guard
|
| Handlebar |
Syncros UC3.0 680mm, Rise 12mm, Backsweep 15°
|
| H'stem |
JD, Adjustable, 31.8*90 mm −10°~+60°, SP Connect
|
| Pedals |
Marwi SP-827
|
| Seatpost |
Syncros M3.0, 31.6mm, 350mm
|
| Seat |
Selle Royal Explora Moderate 170mm
|
| Front Hub |
Shimano HBQC400B58LL, 5x100mm
|
| Chain |
Gates CDC 130T
|
| Cassette |
Gates CDX 32T
|
| Spokes |
Stainless Black 13G
|
| Front Rim |
X18 Disc
|
| Rear Rim |
X18 Disc
|
| Extras |
Ursus U-Mount Kickstand
|
| Approx weight in KG |
28.4
|
| Approx weight in LBS |
62.61
|
| Drive Unit |
Bosch Performance Line (BDU346Y)
|
| Battery |
Bosch PowerTube 540Wh
|
| Display |
Bosch Purion 200
|
| Charger |
Bosch 2A Charger 230V
|
| Grips |
Urban Comfort
|
| Front Tire |
Schwalbe Big Apple Performance, 55-622
|
| Rear Tire |
Schwalbe Big Apple Performance, 55-622
|
| Front Light |
Lezyne Mini Lite STVZO E350
|
| Rear Light |
Lezyne Superbright STVZO
|
| Rack |
Racktime carrier SNAPIT 2.0 30Kg KID'n'CARRY Ready
|
| Fender |
Metasol 65
|
| Max. System Weight |
160kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.
|
